7" IPS TFT WVGA 800×480 Optically-Bonded LVDS PCAP Capacitive Touch Display Module
- Model
- JT070TM010-V1.0
Item specifics
- Resolution
- 800x480
- High brightness
- 420 cd/m²
- Operating temperature
- -30°C to 85°C
- Storage temperature
- -40°C to 85°C
- Bonding Technique
- Optical bonding
- LCD Interface
- LVDS
- CTP Interface
- I2C
Review
Description
The JT070TM010-V1.0 is a 7.0-inch projected capacitive (PCAP) touch display module with 800x480 resolution, integrating a TFT LCD with LVDS interface. It is bonded using Optical bonding, delivering high brightness of 420 cd/m² (Typ), rated for operating temperatures of -30°C to 85°C and storage temperatures of -40°C to 85°C, communicating through a I2C touch interface. Designed for industrial HMI, medical equipment, smart home control panels, and other demanding embedded applications, the JT070TM010-V1.0 combines a compact 7.0" form factor with reliable touch performance and long-term supply stability.

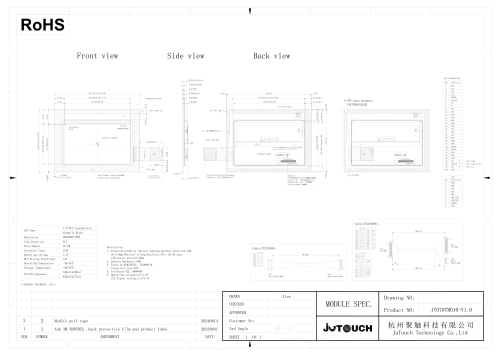

1. Drawing
