7.0" TFT LCD Capacitive Touch Screen Module
- Model
- JT070TM002-V3.0
Item specifics
- Resolution
- 1024x600
- High brightness
- 600 cd/m²
- Operating temperature
- -20 to 70℃
- Storage temperature
- -30 to 80℃
- Bonding Technique
- Air bonding
- CTP Interface
- I2C
Review
Description
The JT070TM002-V3.0 is a 7.0-inch TFT-LCD capacitive touch screen module featuring 1024x600 resolution. It uses a G+G stack with Air bonding, protected by 1.1 mm cover glass / 0.55 mm ITO sensor glass rated at ≥7H surface hardness. The projected-capacitive touch controller CYTMA568-70BUI58 supports 5-point multi-touch and communicates over I2C/5-wire. The module delivers typical brightness of 500/600 cd/m² (min/typ), and an operating/storage temperature range of -20 to 70 °C / -30 to 80 °C. 87% light transmittance; LCD part JT070WSI40M6L03.

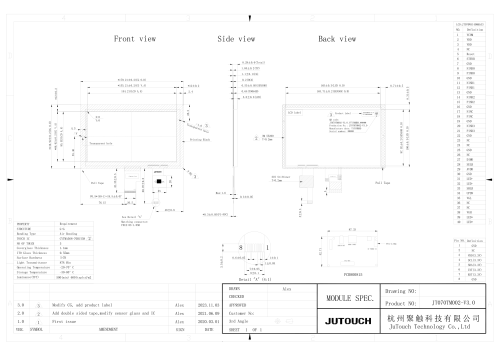

1. Drawing
