7" IPS TFT WSVGA 1024×600 RGB PCAP Capacitive Touch Display Module
- Model
- JT070TM025-V2
Item specifics
- Resolution
- 1024x600
- High brightness
- 360 cd/m²
- Operating temperature
- -20°C to 70°C
- Storage temperature
- -30°C to 80°C
- Bonding Technique
- Air bonding
- LCD Interface
- RGB
- CTP Interface
- I2C
Review
Description
The JT070TM025-V2 is a 7-inch projected capacitive (PCAP) touch display module with 1024x600 resolution, integrating a TFT LCD with 24 bits RGB interface. It is bonded using Air bonding, delivering high brightness of 320 cd/m² (Min), 360 cd/m² (Typ), rated for operating temperatures of -20°C to 70°C and storage temperatures of -30°C to 80°C, communicating through a I2C touch interface. Designed for industrial HMI, medical equipment, smart home control panels, and other demanding embedded applications, the JT070TM025-V2 combines a compact 7" form factor with reliable touch performance and long-term supply stability.

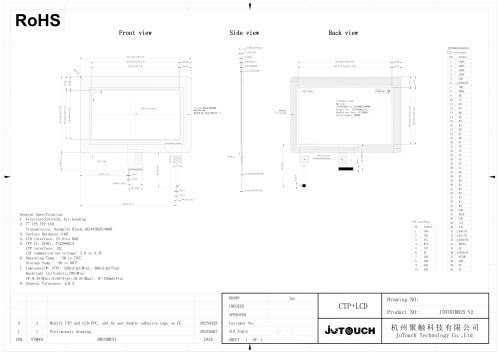

1. Drawing
