5.0" TFT LCD Capacitive Touch Screen Module
- Model
- JT050TM013-V2.0
Item specifics
- Resolution
- 800x480 (RGB)
- High brightness
- 250 cd/m²
- LCD Interface
- RGB 24bits
- Operating temperature
- -20 to 70℃
- Storage temperature
- -30 to 80℃
- Bonding Technique
- Air bonding
- CTP Interface
- I2C
Review
Description
The JT050TM019-V1 (Black) is a 4.95-inch IPS TFT-LCD capacitive touch screen module featuring 480x854 resolution. It uses a G+G+LCD stack with OCA bonding, protected by an Aluminium-silica glass, 0.7 mm cover glass rated at ≥6H surface hardness. The projected-capacitive touch controller GT911 (TX22xRX12) supports 5-point multi-touch and communicates over I2C. The LCD video interface is SPI+RGB 24bits. The module delivers typical brightness of 400/450 cd/m² (min/typ), an operating/storage temperature range of -20 to 70 °C / -30 to 80 °C, and a Normally Black panel. LED lifetime 50,000 hours.

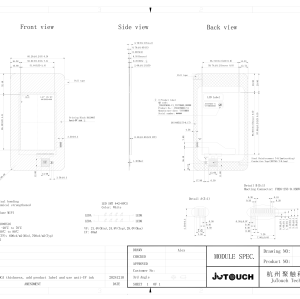

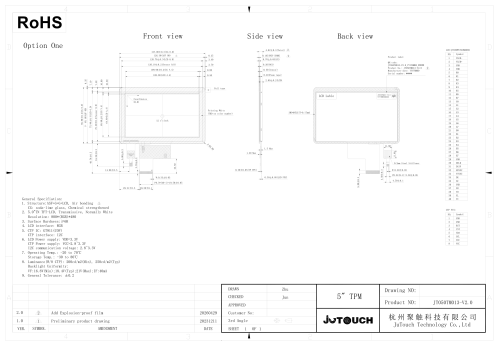

1. Drawing
