5.0" IPS TFT LCD Capacitive Touch Screen Module
- Model
- JT050TM016-V2
Item specifics
- Resolution
- 800x480 (RGB)
- High brightness
- 900 cd/m²
- LCD Interface
- LVDS
- Operating temperature
- -30 to 80℃
- Storage temperature
- -30 to 85℃
- Bonding Technique
- OCA bonding
- CTP Interface
- USB or I2C
Review
Description
The JT050TM016-V2 is a 5.0-inch IPS TFT-LCD capacitive touch screen module featuring 800x480 resolution. It uses a G+G+LCD stack with OCA bonding, protected by a soda-lime glass, thermally tempered cover glass rated at ≥6H surface hardness. The projected-capacitive touch controller EXC81W32 (TX12xRX20) supports 5-point multi-touch and communicates over USB or I2C. The LCD video interface is LVDS. The module delivers typical brightness of 750/900 cd/m² (min/typ), an operating/storage temperature range of -30 to 80 °C / -30 to 85 °C, and a Normally Black panel.

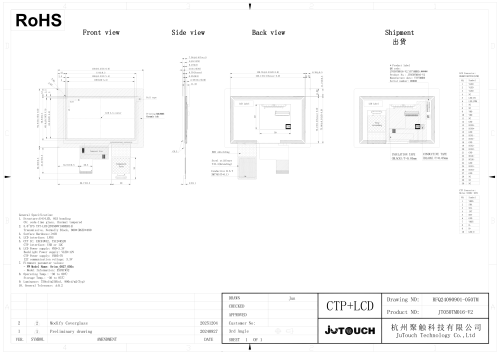

1. Drawing
