4.6" IPS TFT LCD Capacitive Touch Screen Module

Model: JT046TM001-V1

Item specifics

Resolution: 800x320 (RGB)

High brightness: 400 cd/m²

LCD Interface: RGB 24bits

Operating temperature: -20 to 70℃

Storage temperature: -30 to 80℃

Bonding Technique: Air bonding

CTP Interface: USB/I2C

Review

Description

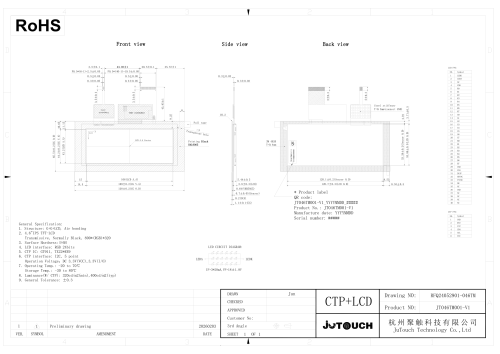

The JT046TM001-V1 is a 4.6" capacitive touch display module featuring 800×320 (RGB) resolution and an RGB 24-bit interface. Its structure is G+G+LCD with air bonding. It uses a 4.6" IPS TFT-LCD that is transmissive and normally black with 800×(RGB)×320 resolution, and has a surface hardness of ≥6H. The LCD interface is RGB 24-bit, while the CTP IC is GT911 with TX22×RX9 and the CTP interface is I2C with 5-point touch. The operation voltage is DC 3.3V (VCC) and 3.3V (I/O). The operating temperature is -20 to 70°C, the storage temperature is -30 to 80°C, the luminance (with CTP) is 320 cd/m² (min) and 400 cd/m² (typ), and the general tolerance is ±0.3.
