7.0" TFT LCD Capacitive Touch Screen Module
- Model
- JT070TM005-V2
Item specifics
- Resolution
- 800x480 (RGB)
- High brightness
- 900 cd/m²
- Operating temperature
- -30-85°C
- Storage temperature
- -40-90°C
- Bonding Technique
- Optical bonding
- LCD Interface
- RGB
- CTP Interface
- I2C
Review
Description
The JT070TM005-V2 is a 7.0-inch TFT-LCD capacitive touch screen module featuring 800x480 resolution. It uses a G(AG)+G stack with Optical bonding, protected by 6.0 mm cover lens (3.2+2.8 mm) / 0.55 mm sensor glass rated at ≥6H surface hardness. The projected-capacitive touch controller EXC80W32 supports 5-point multi-touch and communicates over I2C. The LCD video interface is RGB 24bit. The module delivers typical brightness of 800/900 cd/m² (min/typ), an operating/storage temperature range of -30 to 85 °C / -40 to 90 °C, and a Normally Black panel. Anti-glare etched finish; ≥85% transmittance.

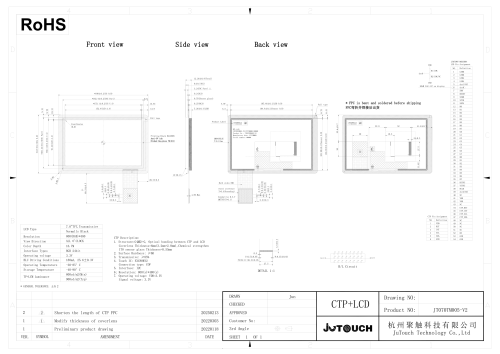

1. Drawing
