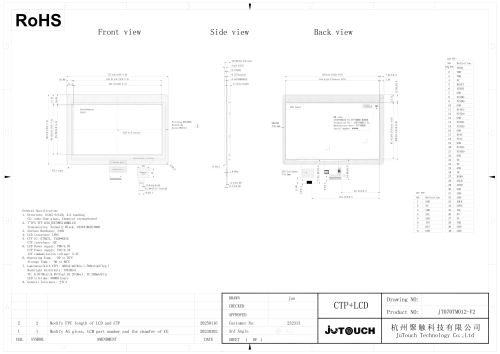

7" IPS TFT WSVGA 1024×600 LVDS PCAP Capacitive Touch Display Module

The JT070TM012-V2 is a 7-inch projected capacitive (PCAP) touch display module with 1024x600 resolution, integrating a TFT LCD with LVDS interface. It is bonded using Air bonding, delivering high brightness of 400 cd/m² (Min), 500 cd/m² (Typ), rated for operating temperatures of -20°C to 70°C and storage temperatures of -30°C to 80°C, communicating through a I2C touch interface. Designed for industrial HMI, medical equipment, smart home control panels, and other demanding embedded applications, the JT070TM012-V2 combines a compact 7" form factor with reliable touch performance and long-term supply stability.
