7.0" 1024x600 LVDS TFT LCD Display Module with Capacitive Touch Panel
- Model
- JT070TM008-V1.0
Item specifics
- Resolution
- 1024*600(RGB)
- High brightness
- 300 cd/m²
- Operating temperature
- -20 to 70°C
- Storage temperature
- -30 to 80°C
- Bonding Technique
- Optical bonding
- LCD Interface
- LVDS
- CTP Interface
- I2C
Review
Description
The JT070TM008-V1.0 is a 7.0-inch TFT-LCD capacitive touch screen module featuring 1280x800 resolution. It uses a G+G stack with Optical bonding, protected by 1.1 mm cover lens / 0.55 mm sensor glass, chemically strengthened rated at ≥6H surface hardness. The projected-capacitive touch controller EXC80W32 supports 5-point multi-touch and communicates over I2C. The LCD video interface is LVDS. The module delivers typical brightness of 270/340 cd/m² (min/typ), an operating/storage temperature range of -20 to 70 °C / -30 to 80 °C, and a Normally Black panel. Backlight VF 8.4-10.5 V / IF 140 mA.

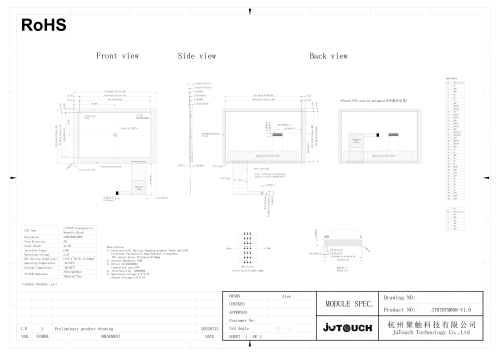

1. Drawing
