15.6 Inch Industrial PCAP Touch Screen LCD Display Module with HDMI – 1920x1080 FHD
- Model
- JT156TM014-V1 with HDMI
Item specifics
- Resolution
- 1920 x 1080 (Full HD)
- High brightness
- 850 cd/m²
- Operating temperature
- -30°C to +85°C
- Storage temperature
- -30°C to +85°C
- Bonding Technique
- OCA bonding
- LCD Interface
- LVDS (2ch)
- CTP Interface
- USB / I2C / RS232
Review
Description
The JT156TM014-V1 with HDMI is a 15.6-inch industrial PCAP touch screen LCD display module from JuTouch Technology. It features a 15.6" TFT-LCD with Full HD resolution of 1920 x 1080 (RGB) and a G+G + LCD structure with OCA bonding, ensuring durable and optically clear performance. The display delivers high brightness of 680 cd/m² (Min) to 850 cd/m² (Typ) with CTP, making it suitable for various indoor and industrial applications. It supports an operating temperature range of -30°C to +85°C and a storage temperature range of -30°C to +85°C. The LCD interface is LVDS (2ch), while the CTP interface supports USB, I2C, and RS232. Additional specifications include a thermally tempered soda-lime cover glass, surface hardness ≥6H, CTP IC EXC81H84 with TX36*RX46 and COB connection, RoHS compliance, and a general tolerance of ±0.5. This module is ideal for industrial control, medical, and embedded systems requiring a reliable, high-resolution touch display with HDMI support.

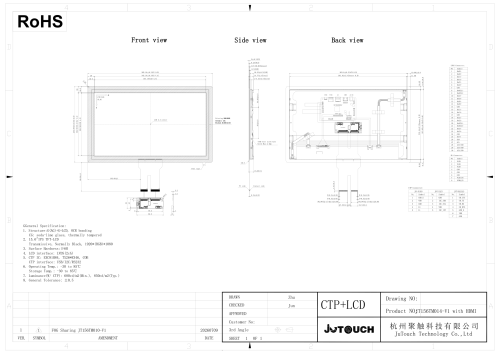

1. Drawing
