19 Inch Industrial PCAP Touch Screen LCD Display Module JT190TM008-V1 with HDMI
- Model
- JT190TM008-V1 with HDMI
Item specifics
- Resolution
- 1280 x 1024 (RGB)
- High brightness
- 1150 cd/m²
- Operating temperature
- -30°C to +70°C
- Storage temperature
- -30°C to +70°C
- Bonding Technique
- OCA bonding
- LCD Interface
- LVDS (2ch)
- CTP Interface
- USB / I2C / RS232
Review
Description
The JT190TM008-V1 with HDMI is a 19.0-inch industrial PCAP touch screen LCD display module from JuTouch Technology. It combines a 19.0" TFT-LCD with a projected capacitive touch panel using a G+G+G+LCD structure and OCA bonding for enhanced durability and optical clarity. The display delivers a resolution of 1280 x 1024 (RGB) SXGA and high brightness of 1050 cd/m² (Min) to 1150 cd/m² (Typ) with CTP. It supports an operating temperature range of -30°C to +70°C and a storage temperature range of -30°C to +70°C, making it suitable for demanding industrial environments. The LCD interface is LVDS (2ch), while the CTP interface supports USB, I2C, and RS232. Additional specifications include a thermally tempered soda-lime cover glass, surface hardness ≥6H, CTP IC EXC81H84 with TX40*RX32 and COB connection, RoHS compliance, and a general tolerance of ±0.5. This module is ideal for industrial control, medical, kiosk, and embedded systems requiring a reliable, high-brightness touch display with HDMI variant support.

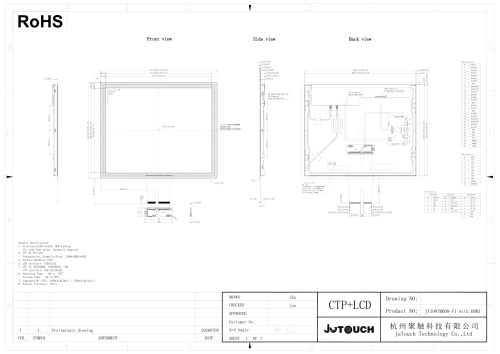

1. Drawing
