JT121TM005-V1 | 12.1-Inch Industrial Touch Display with HDMI, 850 nits
- Model
- JT121TM005-V1 with HDMI
Item specifics
- Resolution
- 1024 × 768
- High brightness
- 850 cd/m²
- Operating temperature
- -20°C to +70°C
- Storage temperature
- -30°C to +80°C
- Bonding Technique
- optical bonding
- LCD Interface
- HDMI / DP
- CTP Interface
- USB
Review
Description
The JT121TM005-V1 is a 12.1-inch industrial touch display featuring a 1024 × 768 IPS TFT-LCD and up to 850 cd/m² typical brightness for clear and reliable visual performance. It adopts a G+G+LCD optical bonding structure with chemically strengthened soda-lime cover glass and a surface hardness of ≥6H, providing a durable touch interface for demanding applications. The display supports HDMI and DP interfaces for flexible connectivity, while USB-A and USB-C interfaces provide convenient touch communication. With an operating temperature range of -20°C to +70°C and a storage temperature range of -30°C to +80°C, it is suitable for a wide range of industrial equipment and control applications.

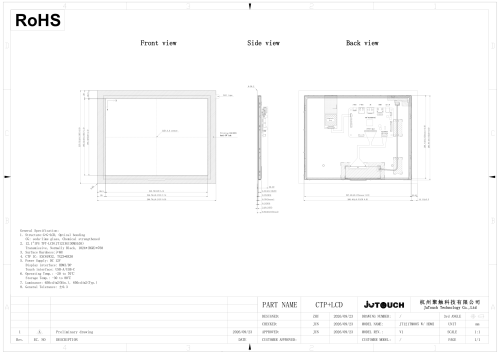

1. Drawing
