10.1 Inch Industrial PCAP Touch Screen LCD Display Module – 850 Nits High Brightness, HDMI/TF-USB, G+G Optical Bonding, RoHS
- Model
- JT101TM018-V1
Item specifics
- Resolution
- 1280*800
- High brightness
- 850 cd/m²
- Operating temperature
- -20°C to +80°C
- Storage temperature
- -30°C to +85°C
- Bonding Technique
- optical bonding
- LCD Interface
- HDMI / DP
- CTP Interface
- USB
Review
Description
JT101TM018-V1 is a 10.1-inch industrial PCAP touch screen LCD display module designed for reliable performance in demanding environments. It delivers high brightness of 750 cd/m² (min) and 850 cd/m² (typ) with PCAP, ensuring clear visibility in various lighting conditions. The module supports a wide operating temperature range of -20°C to +80°C and a storage temperature range of -30°C to +85°C, making it suitable for industrial applications. It features a G+G structure with optical bonding between the PCAP and LCD, enhancing durability and optical clarity. The LCD interface is HDMI/DP, while the CTP interface is USB. Additional specifications include PCAP IC ILI2511C-003, surface hardness ≥6H, COB connection type, RoHS compliance, and general tolerance ±0.3.

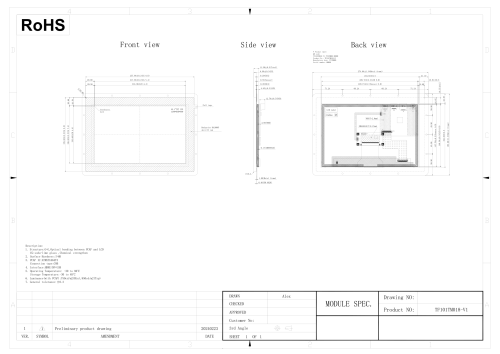

1. Drawing
