10.1 Inch Open Frame Capacitive Touch Monitor 1280x800 850nits HDMI DP USB AG AF Anti-Glare Industrial Embedded Display
- Model
- JT101TM032-V1
Item specifics
- Resolution
- 1280(RGB)×800
- High brightness
- 850 cd/m²
- Operating temperature
- -30°C ~ 80°C
- Storage temperature
- -30°C ~ 85°C
- Bonding Technique
- optical bonding
- LCD Interface
- HDMI / DP
- CTP Interface
- USB
Review
Description
The JT101TM032 is a 10.1-inch open-frame capacitive touch monitor (CTP+LCD) designed for straightforward integration into kiosks, cabinets and custom enclosures, with mounting holes around its 310 × 214 × 8.63 mm open-frame chassis. The panel delivers 1280(RGB)×800 resolution, 16.7M colors, 850 nits typical brightness (750 nits minimum), a 1000:1 contrast ratio and 80° all-direction viewing angles with a 25 ms response time.
OCA optical bonding improves sunlight readability and reduces internal reflection, while the front surface combines an AG anti-glare treatment (gloss 80±15) with an AF anti-fingerprint coating on 6H hardness glass, keeping the screen legible and smudge-free in high-frequency public use. Touch supports 10-point capacitive input via the EXC81W32 controller over USB; video input is available through HDMI and DP, powered from a DC 12V supply. It is rated for -30°C to 80°C operation and passes ±4 kV contact / ±8 kV air ESD testing.
This open-frame industrial touch display is an excellent fit for self-service terminals, vending machines, industrial control panels, elevator displays and smart appliance integrations.

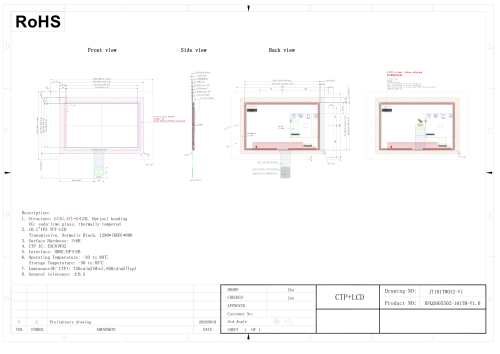

1. Drawing
