4.0" 480*800 IPS TFT LCD Module
- Model
- JT040WVI25M8M02
Item specifics
- Size
- 4.0"
- Resolution
- 480*800
- High brightness
- 800 cd/m²
Review
Description

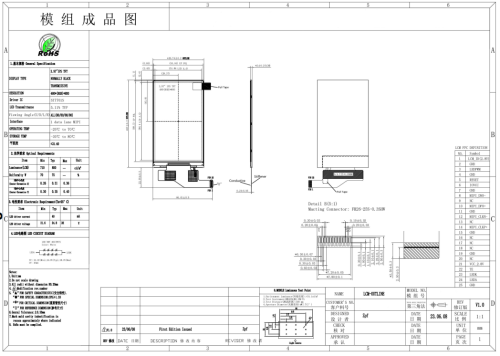

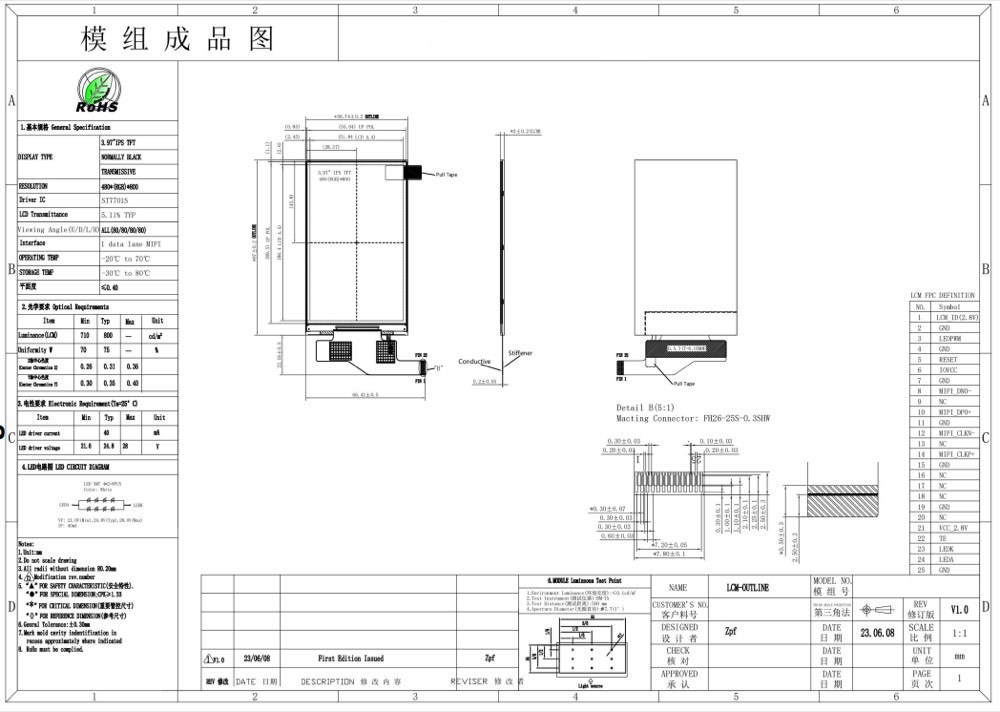

The JT040WVI25M8M02 is a 4.0" IPS TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of an LCD panel, driver ICs, control circuit, and LED backlight. It features 480*800 resolution and displays 16.7M colors. The module operates with a MIPI interface. It delivers a brightness of 800 cd/m² with a viewing angle of ALL O’clock. The surface treatment is Anti-Glare. The active area measures 51.84*86.4 mm with an outline dimension of 56.74*97*2 mm. It supports an operating temperature range of -20~70°C and storage temperature range of -30~80°C. The product complies with RoHS environmental standards.
Product Features
High brightness: 800 cd/m²
Display mode: IPS, Transmissive
Resolution: 480*800
Interface: MIPI
Wide viewing angle: ALL O’clock
Color depth: 16.7M colors (8-bit)
Surface treatment: Anti-Glare
Operating temperature: -20~70°C
Integrated LED driver
RoHS compliant
Jutouch provides customized touch display solutions for industrial, automotive, medical, and smart device applications with reliable performance and flexible design options.
Whether you need a single component or a complete human-machine interaction system, we're ready to support you from the first sample batch.
