2.8" 240*320 IPS TFT LCD Module
- Model
- JT028QVI12MSS05
Item specifics
- Size
- 2.8"
- Resolution
- 240*320
- High brightness
- 1600 cd/m²
Review
Description

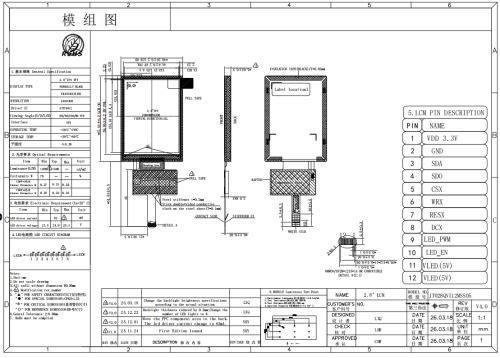

The JT028QVI12MSS05 is a 2.8" IPS TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of an LCD panel, driver ICs, control circuit, and LED backlight. It features 240*320 resolution and displays 262K colors. The module operates with a SPI interface. It delivers a brightness of 1600 cd/m² with a viewing angle of 80/80/80/80 O’clock. The surface treatment is HC. The active area measures 43.2*69.2 mm with an outline dimension of 49.26*67.81*5.03 mm. It supports an operating temperature range of -20~70°C and storage temperature range of -30~80°C. The product complies with RoHS environmental standards.
High brightness: 1600 cd/m²
Display mode: IPS, Transmissive
Resolution: 240*320
Interface: SPI
Wide viewing angle: 80/80/80/80 O’clock
Color depth: 262K colors
Surface treatment: HC (Hard Coating / Anti-Glare)
Operating temperature: -20~70°C
Integrated LED driver
RoHS compliant
