3.5" 800(W) RGB x640(H) Normally Black, Transmissive TFT LCD Module
- Model
- JT035SVI40MSR01
Item specifics
- Size
- 3.5"
- Resolution
- 800(W) RGB x640(H)
- High brightness
- 1000 cd/m²
Review
Description

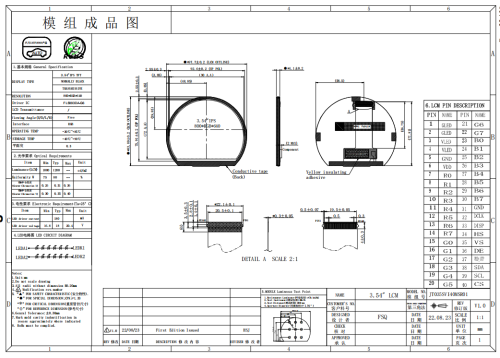

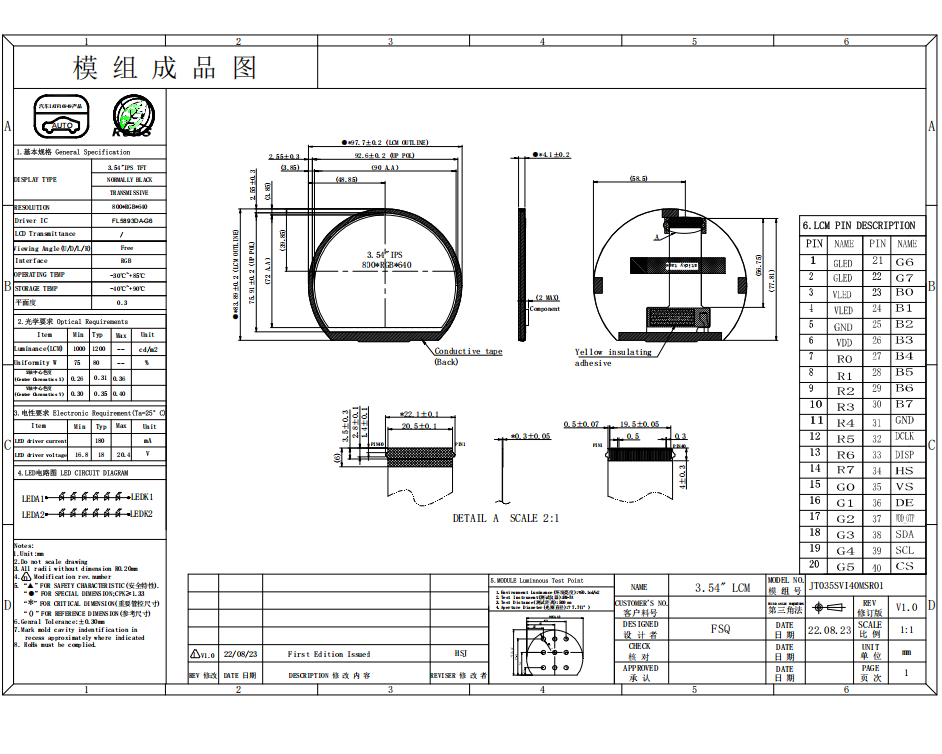

The JT035SVI40MSR01 is a 3.5" Normally Black, Transmissive TFT-LCD (Thin Film Transistor Liquid Crystal Display) module composed of an LCD panel, driver ICs, control circuit, and LED backlight. It features 800(W) RGB x640(H) resolution and displays 16.7M colors. The module operates with a TFT interface. It delivers a brightness of 1000 cd/m² with a viewing angle of ALL O’clock. The surface treatment is Anti-Glare. The active area measures 90(W) ×72(H) mm mm with an outline dimension of 97.7(W)×83.89(H)×4.1(D) mm Note 1 mm. The product complies with RoHS environmental standards.
Product Features
High brightness: 1000 cd/m²
Display mode: Normally Black, Transmissive, Transmissive
Resolution: 800(W) RGB x640(H)
Interface: TFT
Wide viewing angle: ALL O’clock
Surface treatment: Anti-Glare
RoHS compliant
