2.8-inch QVGA High-Brightness TFT-LCD Display Module (1600 cd/m²)
- Model
- JT028QVI12MSS05
Item specifics
- Size
- 2.8-inch
- Resolution
- 240 × 320
- luminance
- 1600 cd/m²
Review
Description
Display Panel and Structure: The JT028QVI12MSS05 is a 2.8-inch color TFT-LCD display module. Display mode: Normally Black, Transmissive; Active area: 43.2 × 57.6 mm; Module outline: 49.26 × 67.81 × 5.03 mm. The panel delivers a resolution of 240 × 320 with accurate color reproduction, suitable for information-dense industrial and commercial interfaces.
Optical Characteristics: Central luminance reaches 1600 cd/m²; contrast ratio 800:1; viewing direction 80/80/80/80. The high-brightness LED backlight ensures clear readability under strong ambient light.
Driver and Interface: The module is driven through a SPI interface, accepting standard video input signals with integrated timing control, supporting plug-and-play integration into customer systems.
Environmental and Reliability: Operating temperature range -20 ~ 70 ℃; storage temperature range -30 ~ 80 ℃. The module has passed rigorous high/low temperature storage, thermal shock, vibration and humidity reliability tests, making it well suited for harsh industrial environments.

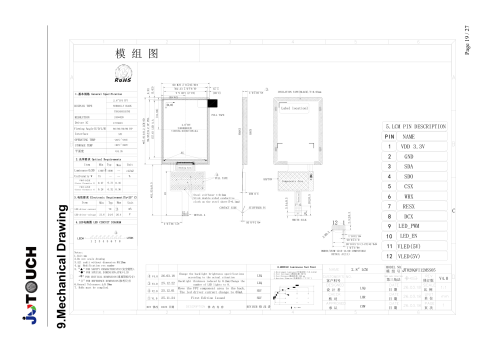

Mechanical Drawing:
