2.4-inch QVGA TFT-LCD Display Module (500 cd/m²)

Display Panel and Structure: The JT024QVI40M5R07 is a 2.4-inch color TFT-LCD display module. Display mode: Normally Black, Transmissive; Active area: 36.72 × 48.96 mm; Module outline: 40.92 × 57.45 × 2.06 mm. The panel delivers a resolution of 240 × 320 with accurate color reproduction, suitable for information-dense industrial and commercial interfaces.

Optical Characteristics: Central luminance reaches 500 cd/m²; contrast ratio 800:1; viewing direction ALL. The high-brightness LED backlight ensures clear readability under strong ambient light.

Driver and Interface: The module is driven through a RGB interface, accepting standard video input signals with integrated timing control, supporting plug-and-play integration into customer systems.

Environmental and Reliability: Operating temperature range -20 ~ 70 ℃; storage temperature range -30 ~ 80 ℃. The module has passed rigorous high/low temperature storage, thermal shock, vibration and humidity reliability tests, making it well suited for harsh industrial environments.

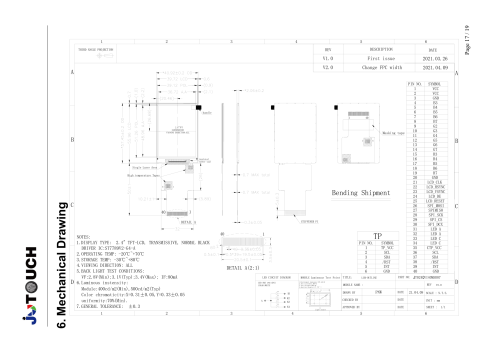

Mechanical Drawing: Detailed dimension drawings (front view / back view / detail views) are provided in JT024QVI40M5R07.png. All dimensions are in millimeters; do not scale the drawing.
