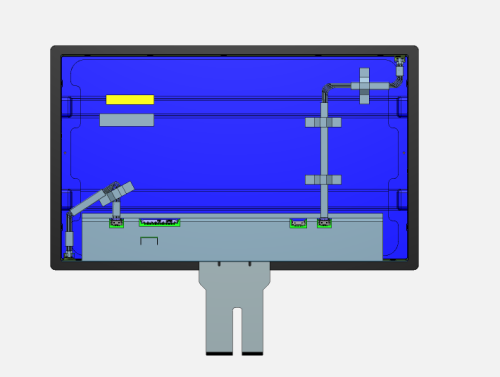

15.6" TFT LCD Display Module with 1000 nits Sunlight Readable, LVDS, Wide Temperature (-30~85°C)
- Model
- JT156TM014-V1
Item specifics
- Resolution
- 1920 × 1080
- High brightness
- 1000
- LCD Interface
- LVDS
- Operating temperature
- -30°C to +85°C
- Storage temperature
- -30°C to +85°C
- CTP Interface
- USB / I2C / RS232
- CTP IC
- EXC81H84
Review
Description
15.6" TFT LCD Display Module with up to 850 nits brightness. Features OCR bonded capacitive touch technology, 10‑point multi‑touch capability, wide operating temperature range from -30°C to +85°C, and 6H surface hardness with etched anti‑glare treatment. Supports USB, I²C, and RS232 touch interfaces, making it ideal for industrial HMI, outdoor terminals, medical equipment, and automation systems.
Whether you need a single component or a complete human-machine interaction system, we're ready to support you from the first sample batch.

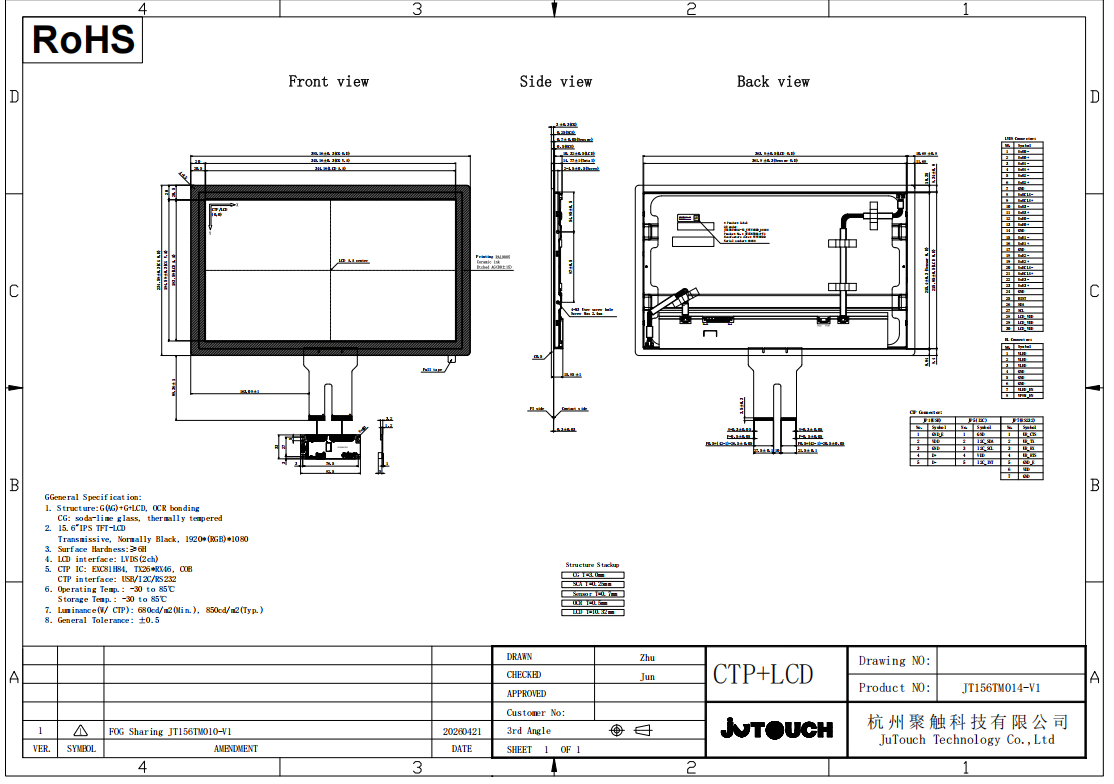

1. Drawing
2. Specifications
2.1 General Specifications
2.1.1 Definition
The specification is used for capacitive touch module with TFT LCD & Backlight Unit.

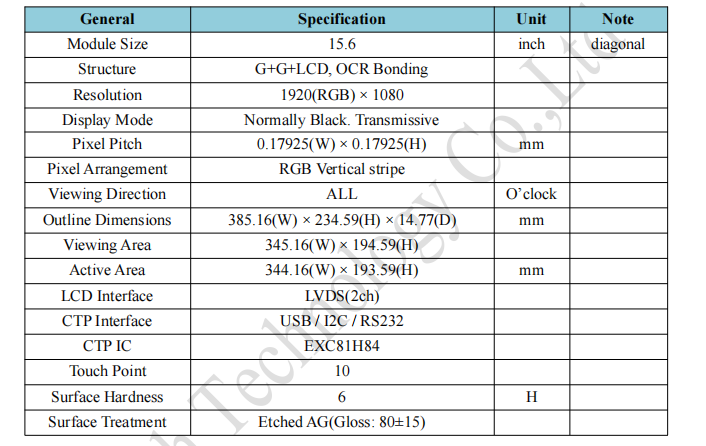

2.1.2 Features and General Description
2.2 Pin assignment

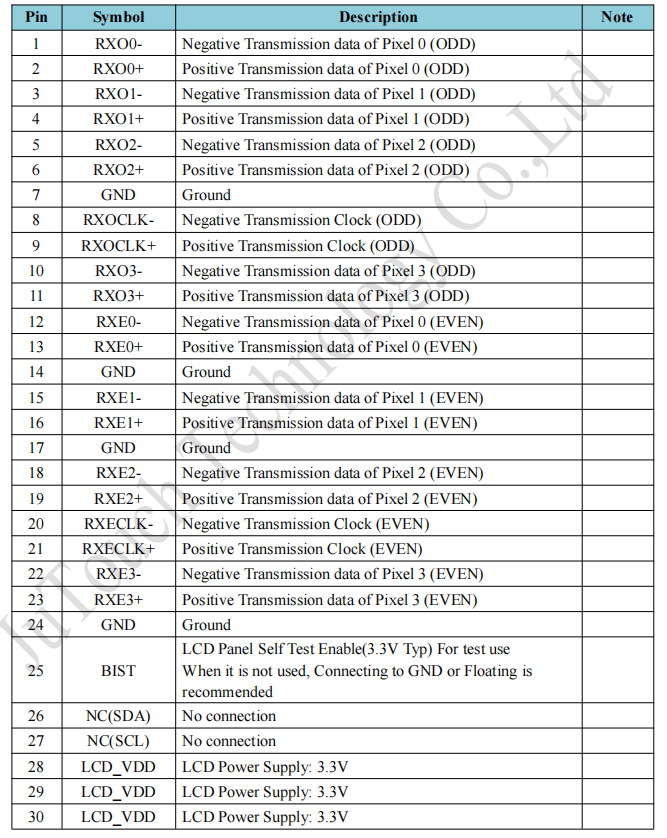

2.2.1 LCD Pin assignment

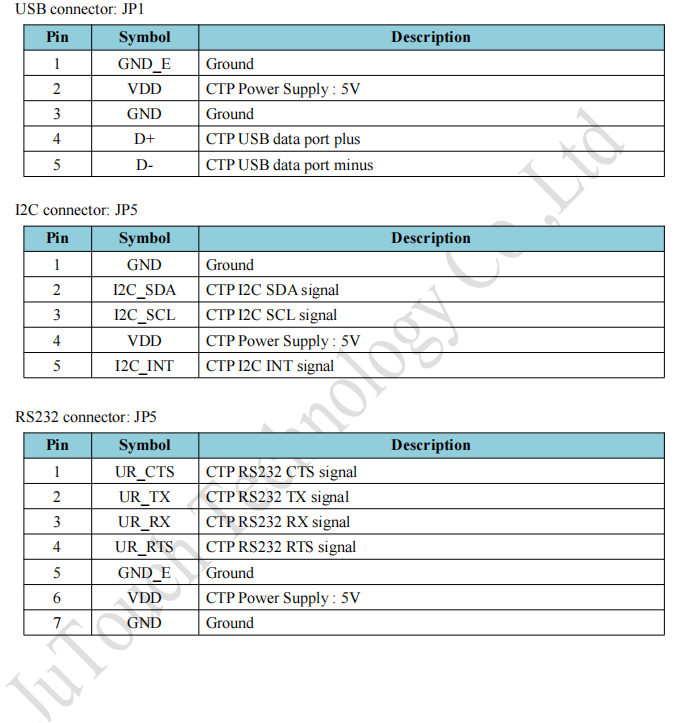

2.2.2 CTP Pin assignment

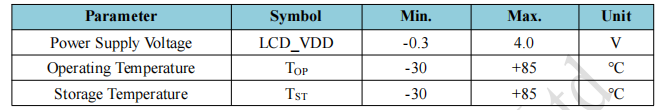

2.3 Absolute Maximum Ratings

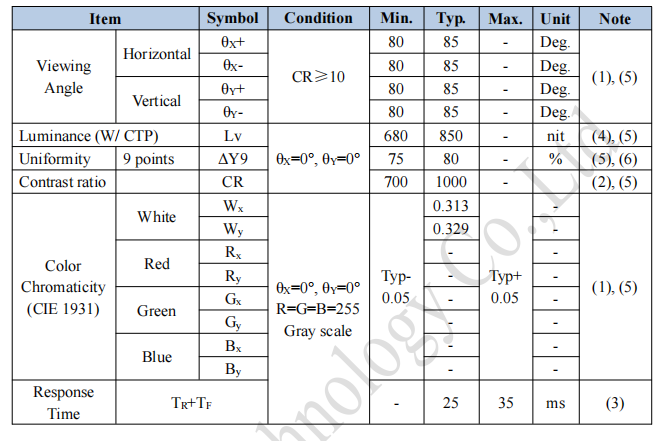

2.4 Optical Characteristics
3 Applications
Industrial Automation HMI
EV Charing Station
Outdoor self-service devices
