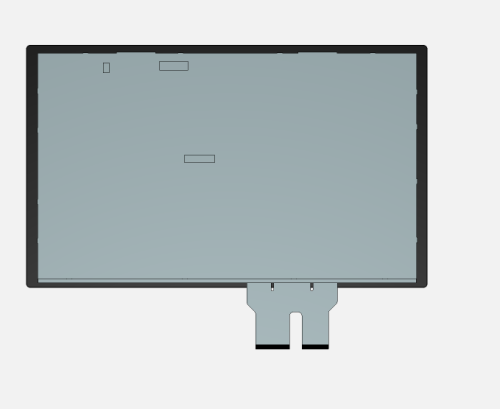

13.3" Industrial PCAP Touchscreen,850 nits Sunlight-Readable, LVDS, USB/I2C/RS232
- Model
- JT133TM005-V1
Item specifics
- Resolution
- 1920×1080(RGB)
- High brightness
- 850cd/m² (Typical)
- LCD Interface
- LVDS
- Operating temperature
- -20°C to +70°C
- Storage temperature
- -30°C to +80°C
- Bonding Technique
- OCA Bonding
- CTP Interface
- USB / I2C / RS232
- CTP IC
- EXC81H84
Review
Description
13.3" Industrial PCAP Touchscreen with up to 850 nits brightness. Features OCA-bonded capacitive touch technology, 10-point multi-touch capability, wide operating temperature range from -20°C to +70°C, and 6H surface hardness with anti-glare treatment. Supports USB, I²C, and RS232 touch interfaces, making it ideal for industrial HMI, EV charging stations, medical equipment, outdoor terminals, and automation systems.
Whether you need a single component or a complete human-machine interaction system, we're ready to support you from the first sample batch.

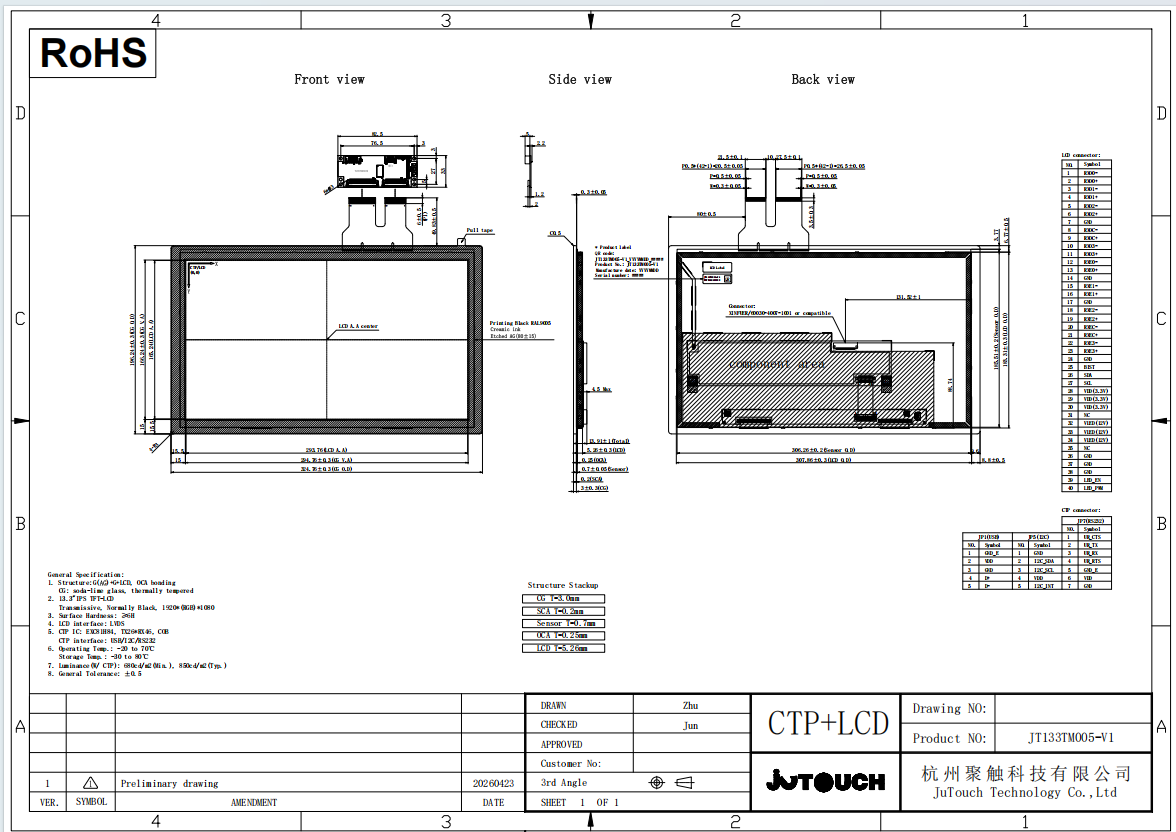

1. Drawing
2. Specifications
2.1 General Specifications
2.1.1 Definition
The specification is used for capacitive touch module with TFT LCD & Backlight Unit.

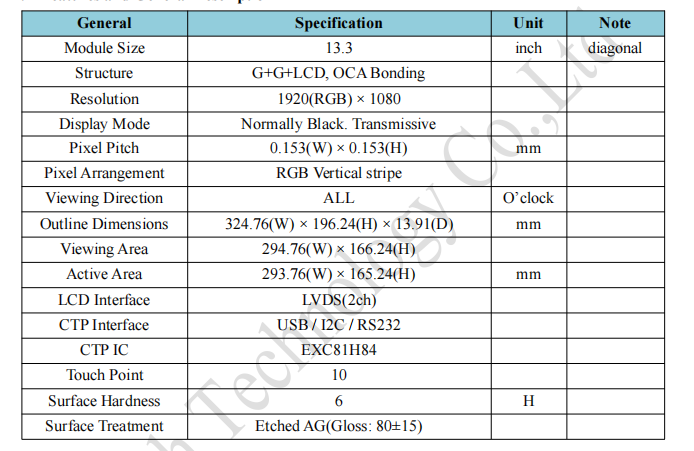

2.1.2 Features and General Description
2.2 Pin assignment

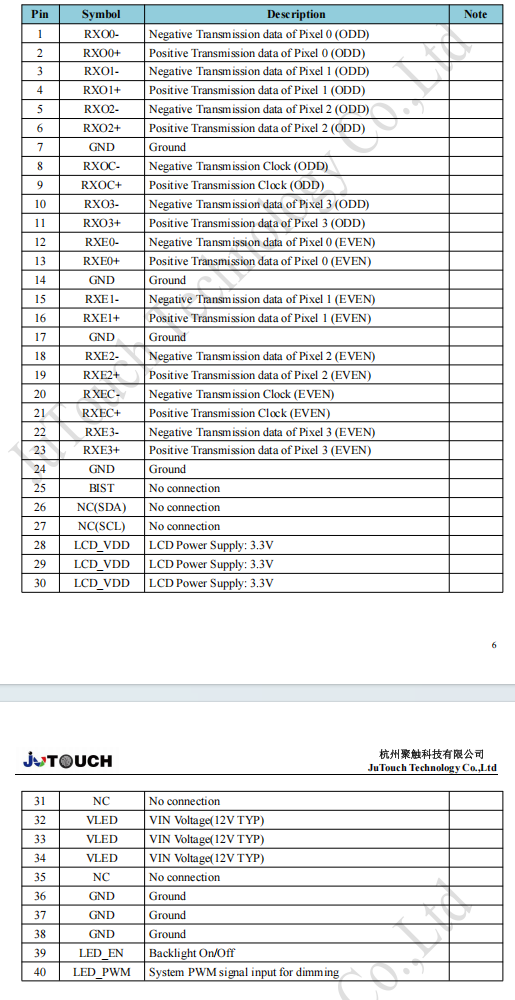

2.2.1 LCD Pin assignment

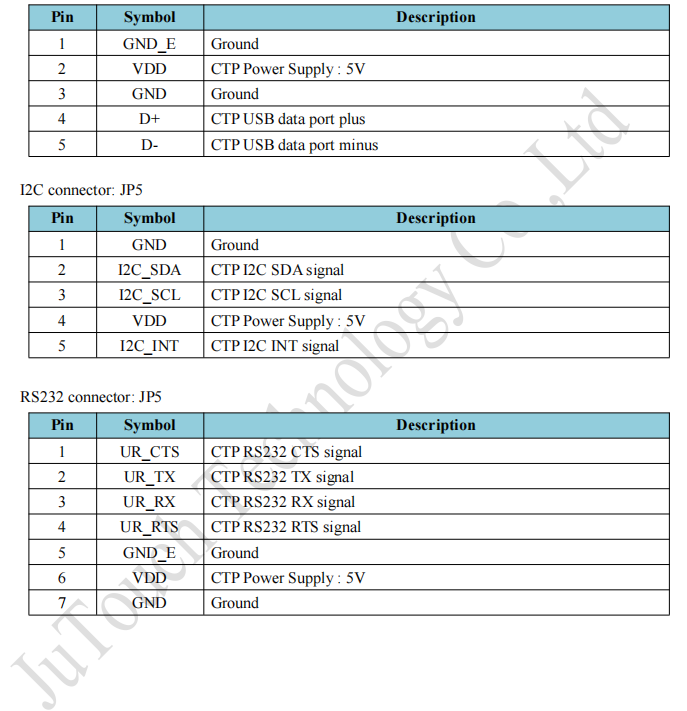

2.2.2 CTP Pin assignment

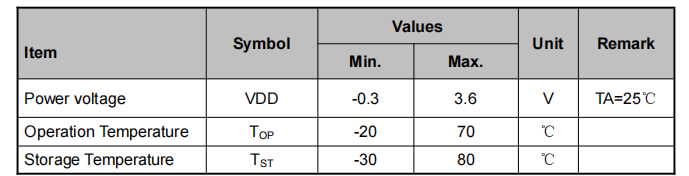

2.3 Absolute Maximum Ratings

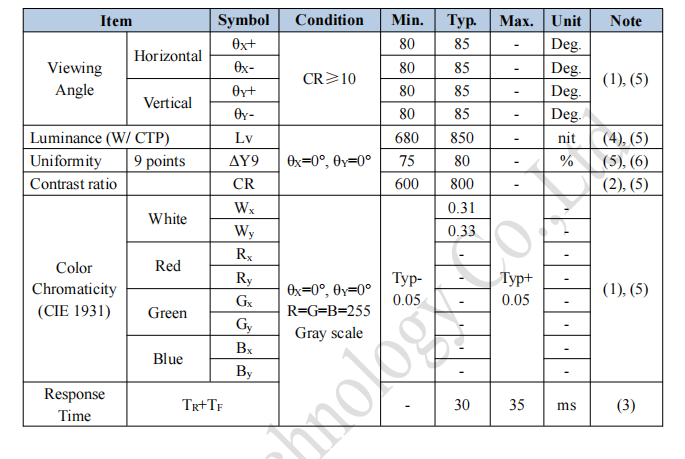

2.4 Optical Characteristics
3 Applications
Industrial Automation HMI
EV Charing Station
Outdoor self-service devices
