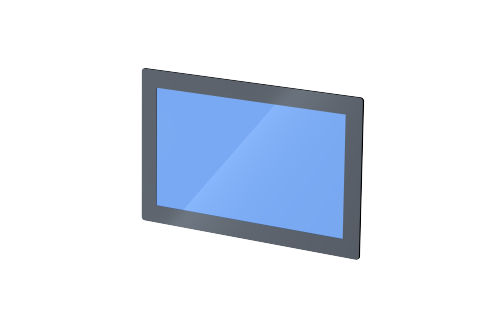

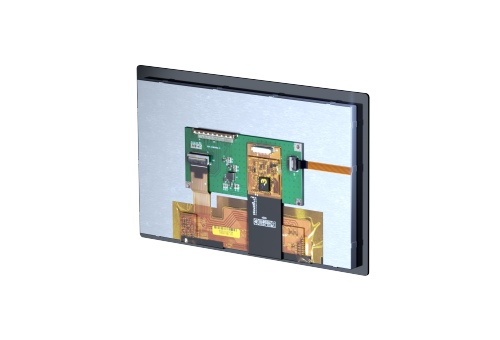

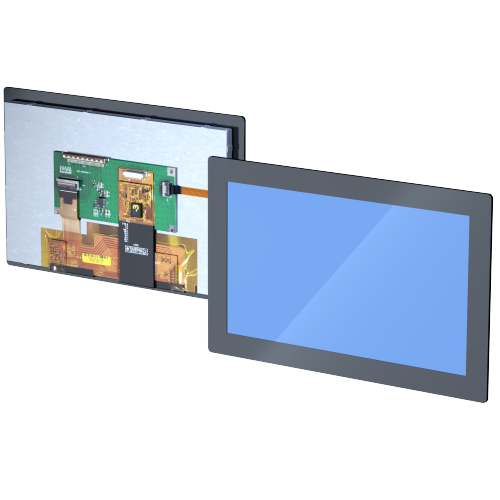

8.0" Rugged Industrial PCAP Touchscreen – 1000 nits Sunlight-Readable, Optical Bonded, LVDS, USB/I2C, Wide Temp (-30~85°C)
- Model
- JT080TM002-V1
Item specifics
- Resolution
- 1280×720 (RGB)
- High brightness
- 1000 cd/m² (Typical)
- LCD Interface
- LVDS
- Operating temperature
- -30°C to +85°C
- Storage temperature
- -40°C to +85°C
- Bonding Technique
- Optical Bonding
- CTP Interface
- USB/I2C
- CTP IC
- EXC81W32
Review
Description
The JT080TM002-V1 is an industrial-grade 8.0" Rugged Industrial PCAP Touchscreen designed for demanding environments. Featuring a high-brightness 1000-nit TFT LCD, optical bonding technology, and 10-point projected capacitive touch, it delivers excellent readability under direct sunlight while maintaining reliable touch performance.
With a wide operating temperature range of -30°C to +85°C, LVDS display interface, and USB/I²C touch communication, this display is ideal for outdoor kiosks, EV chargers, industrial automation equipment, medical devices, marine electronics, and smart agriculture systems.
1. Drawing
2. Specifications
2.1 General Specifications
2.1.1 Definition
The specification is used for capacitive touch module with TFT LCD & Backlight Unit.
2.1.2 Features and General Description
2.2 Pin assignment
2.2.1 LCD Pin assignment
CN1 Module Side Connector : STM MSBKT2407P30 or Compatible
User Side Connector : JAE FI-X30H
2.2.2 CTP Pin assignment
CN2 Module Side Connector : Molex 53216-1071 or Compatible
User Side Connector : Molex 51021-1000
2.3 Absolute Maximum Ratings
2.4 Optical Characteristics
3 Applications
Industrial Automation HMI
EV Charing Station
Outdoor self-service devices
