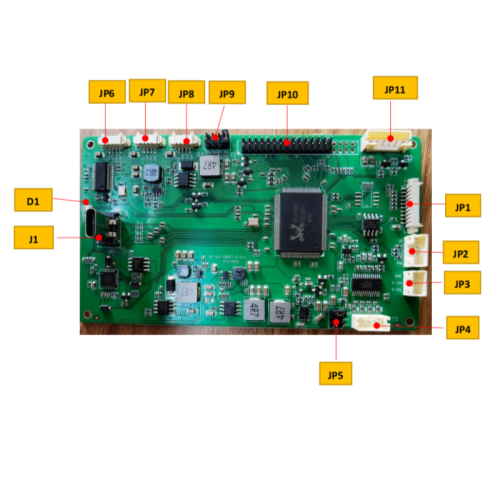

LCD Display Controller Board – HF-KLL-CBR5T-K-V1.1
- Model
- HF-KLL-CBR5T-K-V1.1
Item specifics
- Resolution
- 1280×800@60Hz / 1920×1080@60Hz
- Input Signal
- 1× USB Type-C (24-pin)
- Control Protocol
- I2C Support
Review
Description
HF-KLL-CBR5T-K-V1.1 is a portable display controller board featuring Type-C input, LVDS panel support, PD power management, and built-in 2×20W Class-D audio output for high-performance display applications.
HF-KLL-CBR5T-K-V1.1 is a versatile LCD display controller board designed for portable display solutions. Powered by the Realtek RTD2555T chipset, it supports 6-bit/8-bit LVDS panels with 1-port or 2-port configurations and provides display resolutions up to 1920×1080@60Hz. The board integrates a Type-C video and power input interface with PD protocol support, enabling flexible power delivery from 5V/12V/15V/20V sources.
With integrated Class-D audio amplification delivering 2×20W output at 8Ω, I2C protocol support, USB interfaces, and low standby power consumption below 0.5W, this controller board provides a compact and efficient solution for portable monitors and customized display systems.
