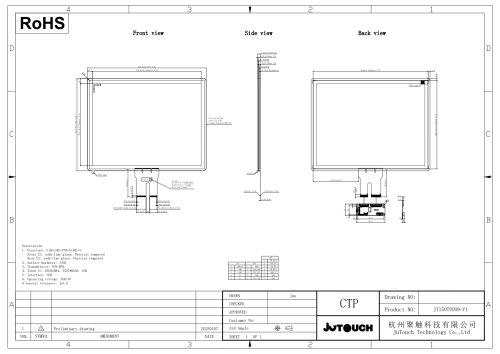

15.0" PVB laminated AG+AR Capacitive Touch Panel JT150TP009-V1
- Model
- JT150TP009-V1
Item specifics
- Controller IC
- EXC81H84
- Size
- 15.0-inch
- Interface
- USB
Review
Description
15.0" PVB laminated AG+AR touch panel, EXC81H84 IC, ≥70% trans., ≥6H hardness, USB, for industrial HMI and embedded systems.
The JT150TP009-V1 is a 15.0-inch PVB laminated capacitive touch panel that combines explosion-proof safety construction with a dual optical surface treatment consisting of Anti-Glare (AG) and Anti-Reflective (AR) coatings. This panel is designed for applications that require both safety certification and enhanced optical performance in challenging lighting environments, but where the additional Anti-Fingerprint (AF) treatment of the JT150TP011-V1 model is not necessary. The PVB lamination provides the explosion-proof safety characteristics, while the AG+AR surface treatment stack delivers superior visibility under bright ambient lighting conditions. Equipped with the EXC81H84 controller IC and a USB interface, this panel targets industrial HMI and embedded system applications where safety, visibility, and reliability are key requirements.
