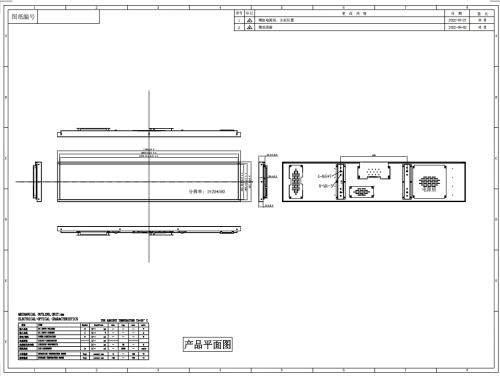

43.0-inch WUXGA Bar-Type TFT LCD with RGBW Sub-Pixels (1920×360)

A 43.0-inch color active matrix LCD module integrates a source PCB directly on the panel and employs Gate‑in‑Panel (GIP) technology, which eliminates the need for external gate driver ICs, reduces bezel width, enhances mechanical reliability, and lowers overall system cost. It delivers WUXGA resolution (1920 × 360) with a 10‑bit gray‑scale capability, enabling over 1.07 billion colors for smooth gradients and lifelike image reproduction. The RGBW (Red‑Green‑Blue‑White) sub‑pixel arrangement improves luminous efficacy by adding a white channel, boosting brightness and energy efficiency without compromising color gamut, which is particularly beneficial for high‑ambient‑light environments. The panel features a 10‑bit 2‑port LVDS interface that supports high‑speed data transmission with low EMI, ensuring stable operation even at long cable lengths. Its 178° ultra‑wide viewing angles (both horizontal and vertical) guarantee consistent color and contrast from any off‑axis position, while the anti‑reflection front polarizer (reflectance < 2%) minimizes ambient light reflections, enhancing readability in bright rooms. The design supports both landscape and portrait orientations, offering flexible integration for digital signage, information kiosks, and dual‑screen TV walls. Additionally, the module provides a typical brightness of 500 cd/m², a static contrast ratio of 5000:1, and a response time of 8 ms (G‑to‑G), making it suitable for fast‑moving video content. It is equipped with energy‑efficient LED backlights rated for 50,000 hours of lifetime, and operates reliably over a temperature range of 0 °C to 50 °C with a storage range of ‑20 °C to 60 °C. The overall dimensions are 1053 mm × 223 mm × 18 mm (typical), with a weight of approximately 5.2 kg. Optional PCAP touch integration (10‑point multi‑touch) can be added upon request for interactive applications. This panel is engineered to deliver premium image quality for LCD TV and PCTV products, offering a perfect balance of high brightness, wide color performance, and low power consumption (typical 65 W) to meet the demanding requirements of next‑generation home entertainment and professional display systems.
