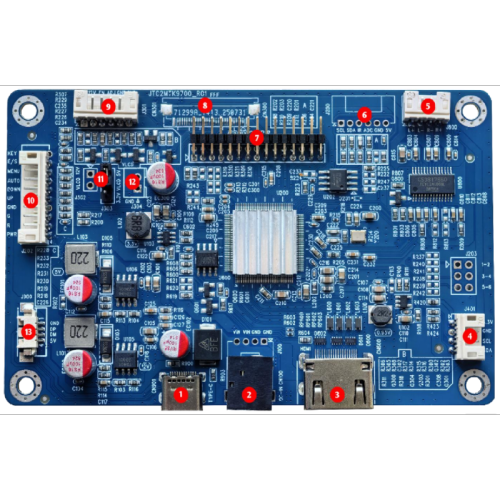

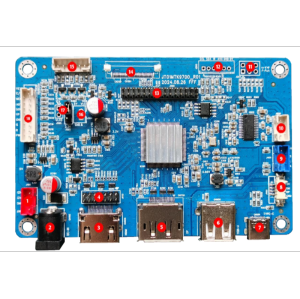

Industrial HDMI LCD Controller Board | 12-24V Wide Voltage LVDS eDP Driver Board | JT02MTK9700_R01
- Model
- JT02MTK9700_R01
Review
Description
The JT02MTK9700_R01 is a rugged, high‑performance LCD controller board engineered for demanding industrial environments. Its wide‑range DC power input (12 V to 24 V, with ±10% tolerance) ensures seamless integration into machinery, vehicles, and field‑deployed systems where supply voltage may vary. At its core, the board employs an advanced MTK system‑on‑chip (SoC) with an integrated graphics engine, capable of hardware‑accelerated video decoding and real‑time image scaling, while maintaining low power consumption (< 5 W typical) and reliable operation across a wide temperature range of ‑20 °C to +70 °C (storage: ‑30 °C to +80 °C).
The board accepts HDMI input (compatible with HDMI 1.4 and 2.0, supporting up to 1080p at 60 Hz) and drives TFT LCD panels via both LVDS and eDP output interfaces. The LVDS port supports single‑channel and dual‑channel configurations, with 6‑bit/8‑bit/10‑bit color depth, while the eDP interface (v1.2) offers high‑speed differential signalling for panels with up to 1920 × 1200 resolution at 60 Hz refresh rate. The controller automatically detects panel parameters and adjusts timing, gamma, and backlight PWM frequency, ensuring plug‑and‑play compatibility with a wide variety of displays.
In addition to core video processing, the JT02MTK9700_R01 comes with a suite of optional features that enhance system flexibility:
Ambient light sensor – enables automatic backlight brightness adjustment to reduce power consumption and improve readability under changing lighting conditions.
Infrared remote control – supports user‑programmable IR codes, allowing wireless menu navigation and system control without a physical keypad.
UART serial interface – provides a simple 2‑pin (TX/RX) communication channel for host control, diagnostics, and firmware updates over serial commands.
Built‑in 2 × 10 W Class‑D audio amplifier – delivers clean, efficient sound amplification with low distortion (THD + N < 1%) for integrated speaker systems in kiosks and interactive terminals.
The board is equipped with robust protection circuits, including over‑voltage, reverse‑polarity, and ESD protection (contact discharge ±8 kV), making it suitable for industrial automation, transportation infotainment, retail kiosks, and embedded medical displays. Its compact form factor (120 mm × 80 mm) and flexible mounting holes simplify integration into existing enclosures.
Beyond the controller board itself, JuTouch offers end‑to‑end customized touch display solutions spanning industrial, automotive, medical, and smart device sectors. We provide comprehensive support – from initial concept and hardware/software co‑design, to sample validation, compliance testing, and mass production. Whether you require a standalone controller, a fully assembled display module with touch, or a complete human‑machine interaction system, our engineering team is ready to assist you from the very first sample batch to final volume delivery, with fast turnaround and dedicated technical support.
